Part Number: KR5241H
The KR5241H is a High Low Beam connection points for installation.
The low beam is a flood pattern, and the high beam adds a spot pattern.
Replaces OEM Part Numbers: AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082
Parameters:
• Replaces Left-Hand or Right-Hand Front Hood,Fender or Upper Cab Work Light
• 1850 Effective Lumens

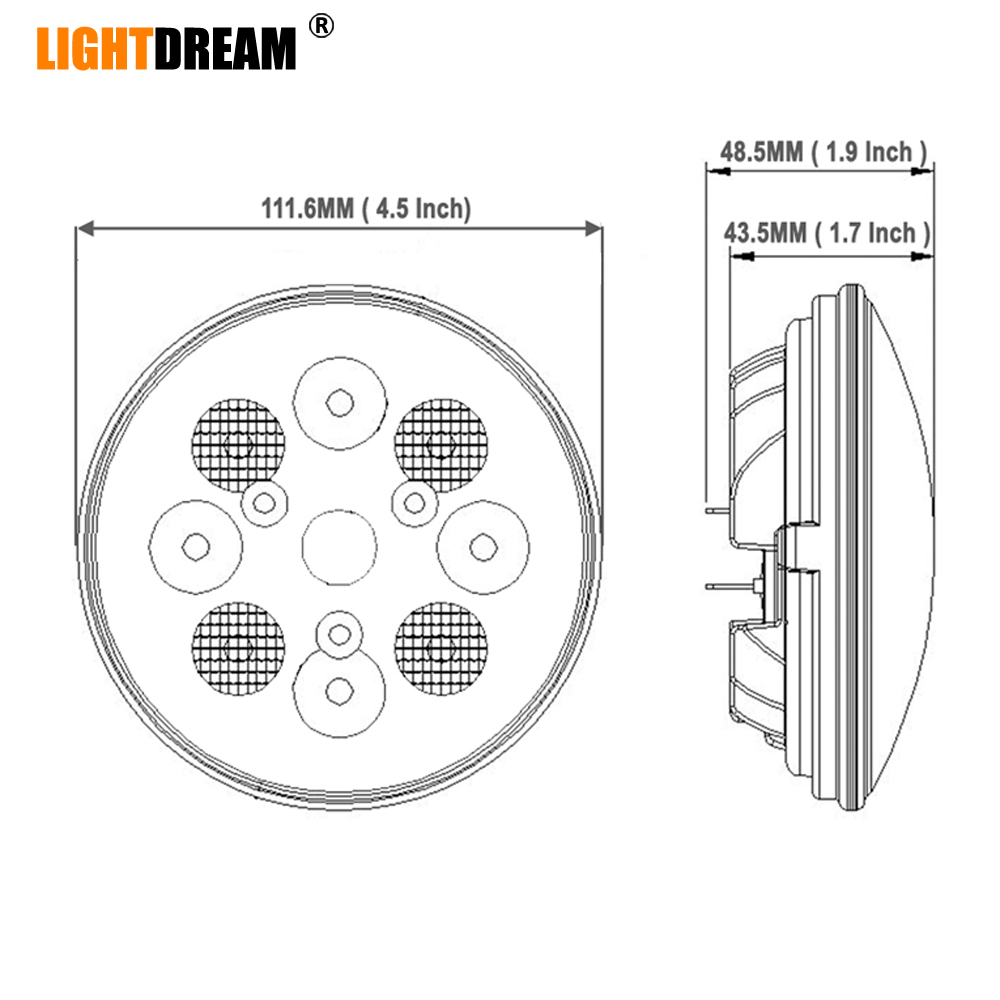

• 4.5″ Diameter x 1.7″ Depth – Par36 Replacement Light
• Flood/Spot Beam Pattern
• 16 Watts; 1.3 Amp Draw
• 12-Volt to 24-Volt Input Voltage
• Manufacturer’s Limited Lifetime Warranty–1 Year
Fits – John Deere 2020-8050 Series LED Hood/Fender/Cab Light – Hi/Lo Beam
Tractors: 7020, 7520;
Row-Crop Tractors: 4000, 4620;
Utility Tractors: 2155, 3040, 3140;
2020 Series: 2520;
2040 Series: 2940;
2050 Series: 2350, 2550, 2750, 2950;
3055 Series: 3155;
3150 Series: 3150;
20 Series: 4320;
30 Series: 4030, 4230, 4430, 4630;
40 Series: 4040, 4240;
50 Series: 4450, 4650, 4850;
55 Utility Series: 2355, 2355N, 2555, 2755,2855N, 2955;
8030 4WD Series: 8430, 8630;
8050 4WD Series: 8450, 8650, 8850;
Iron Horses 4WD Series: 8440, 8640;
Generation II Series: 6030;
New Generation Series: 4020;
Combines: 3300, 4400, 4420, 6600, 6602, 6620, 6622, 7700, 7720, 8820;
Cotton Pickers: 9900, 9910, 9920, 9930, 9940, 9950;
Sprayers: 6100, 6500, 6600, 6700
Replaces John Deere OEM Part Numbers ：
AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082
